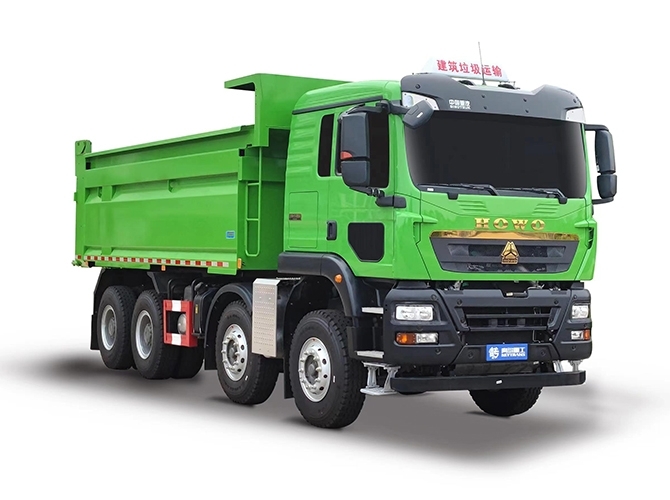

HOWO-TX urban construction residue dump truck
Weichai 12-liter engine paired with HOWO 12-speed transmission delivers powerful performance and strong acceleration from a standstill. The high-strength, wear-resistant steel plate body features an expanded capacity design, offering large volume, high load capacity, and a durable yet lightweight construction.
Technical parameter
| Version | Large expanded version |
| Cargo compartment dimensions | 5600/5800×2350×1500mm |
| Cargo compartment material | NM450 (Optional higher strength Hardox450) |
| Cargo compartment thickness | 7 for floor and 5 for side panels |
| Subframe | High-strength steel section + cross beam reinforced structure |
| Capping system | Lightweight electric tarpaulin capping |
| Hydraulic system | Eurik 152 |
Vehicle specification
| Overall dimensions (mm) | 8930×2550×3450 |
| Wheelbase (mm) | 1800+2825+1350 |
| Front/rear overhang (mm) | 1500/1455，1500/1430 |
| Manufacturer’s maximum gross mass (kg) | 31000 |
| Rated seating capacity (Person) | 2 |
