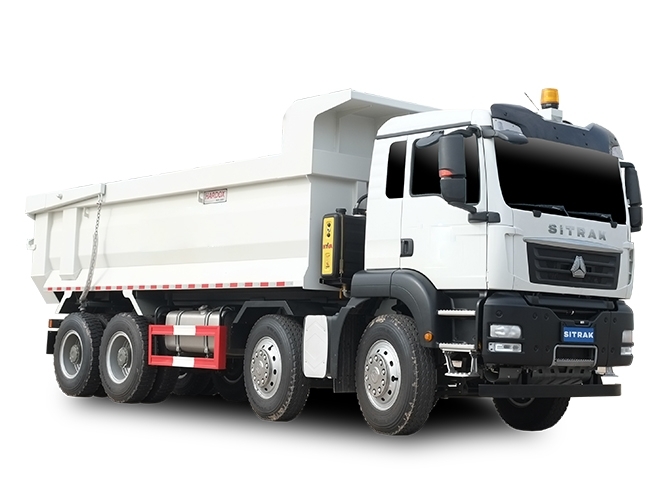

SITRAK-G7 mining engineering dump truck (Export)

Vehicle descriptive introduction: MAN technology high power engine features strong power, good fuel-saving, and high durability. The U-shaped expanded cargo compartment made of imported HARDOX wearing plates features high capacity and high carrying capacity. The cantilever type back gate opening mechanism increases the opening angle of back gate and ensures the smooth dumping without impact.

Technical parameter

Version U-shaped expanded
Cargo compartment dimensions 6800×2300×1500mm
Cargo compartment material Hardox450
Subframe High-strength steel section + cross beam reinforced structure
Opening of back gate Cantilever type opening and closing of back gate
Hydraulic system Hyva FEA157

Vehicle specification

Overall dimensions (mm) 9850×2550×3500
Wheelbase (mm) 1800+3225+1350
Front/rear overhang (mm) 1500/1765
Manufacturer’s maximum gross mass (kg) 31000
Rated seating capacity (Person) 2
#
