8~10 platform

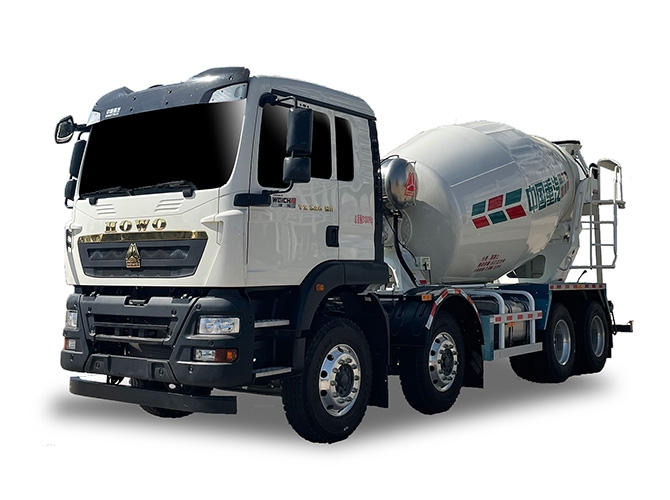

Vehicle descriptive introduction: With the increasingly strict policies of 'traffic restriction' and 'inspection and management' in the field of engineering vehicles, the market terminal is in urgent need of an engineering vehicle product with excellent performance and compliance with regulatory requirements. With ultra-light dead weight, compliance with registration requirements, and safe operation, Qingdao Heavy Industry’s Howo TX Qinghong 8m3 mixer truck creates greater value for extensive customers and empowers the transformation and upgrade of the commercial concrete industry.

Vehicle configuration and parameters

Vehicle model QDZ5319GJBZHTX30F1
Chassis platform Howo TX
Drive mode 8×4
Cab TX-K/TX-F
Overall dimensions of vehicle 9760×2530×3800
Wheelbase 1800+3000+1400
Complete vehicle curb mass/kg 11300
Vehicle full-load mass/kg 31000
Engine Model WP7H.320E62
Net power (KW)/speed (r/min) 230/2100
Maximum torque (Nm)/Speed (r/min) 1300/1200-1600
Transmission HW13709XSTL
Front axle VGD50
Rear axle MCJ11BGY/5.29
Suspension 3/3/4
Tire 11R22.5 18PR
Maximum traveling speed (km/h) 82
Mixing capacity/m3 8
Drive system 進口系統(tǒng)
Feeding speed/m3/min ≥3
Discharge speed/m3/min ≥2
Discharge residual rate ≤0.5%
#
