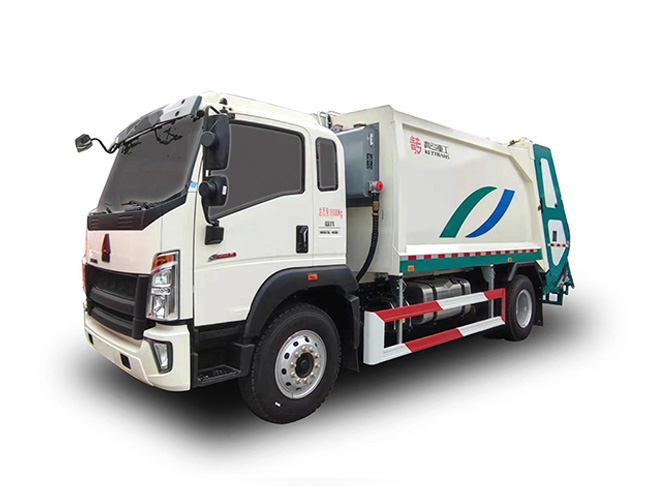

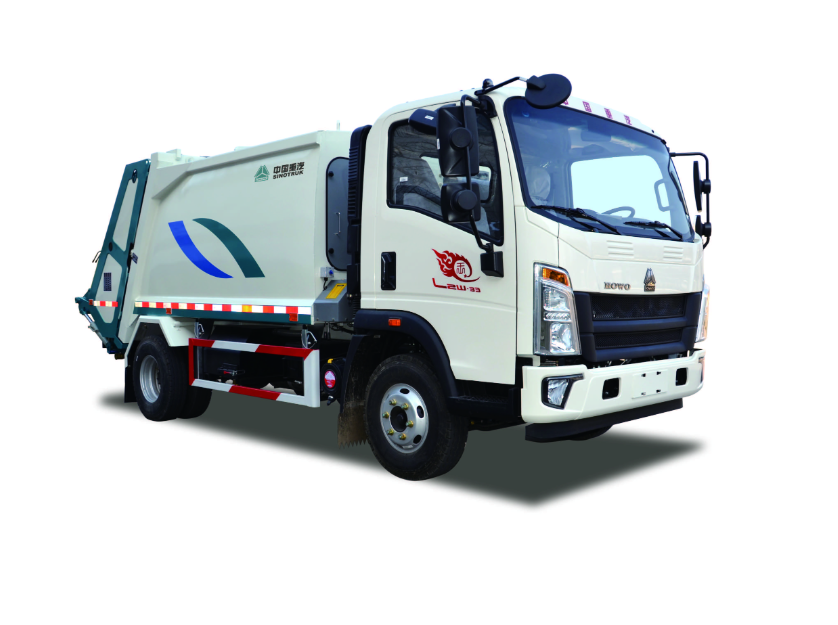

HOWO light-duty garbage compactor truck

Vehicle descriptive introduction: Qingzhuan garbage compactor truck inherits the “reliable and durable” technical features of European and American like products. With beautiful appearance, excellent performance, and humanized maneuverability, this vehicle adopts two-way compacting technology to realize the collection and transport of township household garbage. Featuring high compacting ratio, the density of compacted common household garbage can achieve 700-800kg/m3. It’s mainly suitable for the collection and transport of household garbage in bins, bags, and bulks for township residential areas, communities, large factories and mines, and institutions and universalities and incorporates multiple types of bin (bucket) tilting mechanisms to adapt to diversified garbage collection modes for different users.

Technical parameter

Effective capacity of garbage compartment (m3) 6.5
Pre-compactor capacity (m3) 0.9
Pre-compacting cycle time (s) ≤25
Garbage dumping cycle time (s) ≤45
Pre-compactor lifting time (s) 8~10
Rated pressure of hydraulic system (MPa) 20
Control mode of hydraulic system Manual/electric integrated
Cylinder type Double-acting piston type
Oil pump Duplex gear pump
Reversing valve Multi-way directional valve
Manipulator configuration (Standard) Standard dual square bin manipulator

Vehicle specification

Product model QDZ5080ZYSZHG3WF
Chassis model ZZ1087G3315F183
Gross weight (kg) 8280
Overall dimensions (mm) 6461,6695,6745×2300×2520
Wheelbase (mm) 3280
Engine model (kw) WP3NQ160E61
Maximum traveling speed (km/h) 95
#
